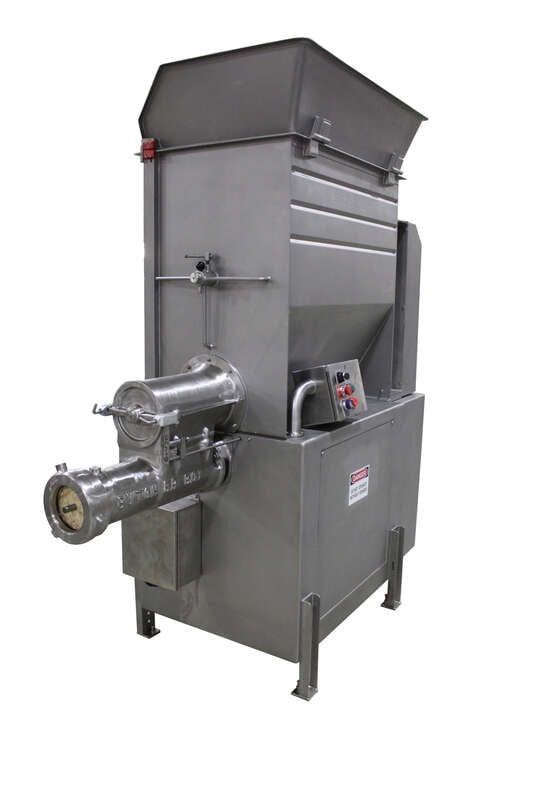

Butcher Boy 500-66 Mixer Grinder
Thumbnail

Butcher Boy 500-66 Mixer Grinder

Features:

Stainless steel construction
Stainless steel cutting group: #66 (8-5/8") head, feed screw, and ring
Stainless steel mixing paddles and conveyor feed screw
Watertight start/stop stations
Adjustable mixer timer
TEFC motor conforms to NEMA specifications
Heavy-duty gear box
Non-magnetic stainless paddles and conveyor screw
Built to USDA certification

Allen-Bradley safety switches
On/Off Lockout/Tagout switch

Knife/Plate size: 66"
Capacity: +/- 300 - 400 lbs/min (with 1/8" plate)
Hopper: +/- 500 lbs mixing capacity (fresh, flaked, tempered meat)

Electrical: 460V / 60 Hz / 3 Ø

Total Horse Power: 50 HP
Grinder motor: 40 HP
Mixer motor: 5 HP
Conveyor screw motor: 5 HP

O/A dims.: +/- 76 L x 34 W x 72 - 78" H
Mixer tub dim.: +/- 60 L x 36 W x 31" D

Includes:
One grinding plate and knife determined by the customer at the time of purchase
Adjustable legs
Spurt guard
Spanner wrench
Parts list and instruction manual

Net weight: +/- 1775 lbs (805 kg)

Options:
Additional grinding plates and knives
Bone collector system
Voltage change to 230V
MPBS buggy lift for loading the mixer-grinder
400 lbs Stainless steel buggy
Grated lid cover
Various hoppers
Conveyor for easy loading
Platform steps for operator to hand load machine
