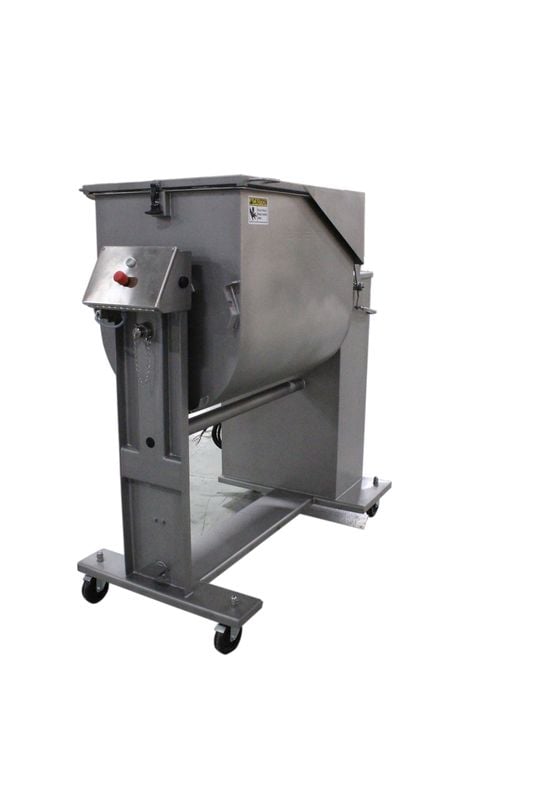

Butcher Boy 500 Mixer
Thumbnail

Butcher Boy 500 Mixer


Features:

Stainless steel construction:
Tub
Frame
Cabinet
Shafts
Mixing paddle assembly
Fabricated of non-magnetic stainless steel

Switch:
Installed in enclosure
Magnetic with 24 volt control circuit Automatic rest overload protection
Machine electrical lock out switch provided
Over current protection to be installed by user

Start and stop control
Two hands needed to unload product with tub in tilt position

Stainless steel tub:
Dims.: 24" W x 36" L x 30" D
Tub tilts to right or left for unloading (specify unloading directions with order) Unloading position is 27" from floor
Tub capacity: 400 lbs. depending on product
Best results with 500 lbs (for proper mixing do not overload)

Stainless steel mixing paddle assembly: Fabricated in one unit
Easily removable for cleaning

Stainless steel safety lid:
Stainless steel easily opened and closed Serves double purpose:
prevents spilling and automatically shuts off motor when opened
Mixer will not operate in upright position unless lid is closed
Seasoning can be added while mixing, thru view holes in lid

Motor:
230/460V / 60 Hz / 3 Ø
Heavy duty 3 HP
TEFC motor conforms to NEMA specification Motor and drive totally enclosed in cabinet

O/A dims.: 34¾ W x 62 L x 65½ H (with lid up 89")
Gear reduction: Heavy-duty permanently lubricated helical/worm reduction

Includes:
Operating instructions and parts list

Mixer manufactured with UL listed components to USDA standards

Options: Timers
