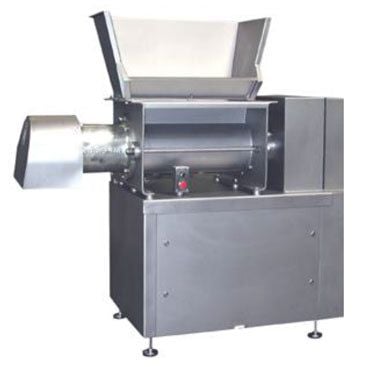

Butcher Boy FMBG 1100 Frozen Meat Block Grinder
Thumbnail

Butcher Boy FMBG 1100 Frozen Meat Block Grinder

Features:

Stainless steel construction
Electrical: 208/230/460V / 60 Hz / 3 Ø, 100 HP
TEFC motor conforms to NEMA specifications

Motor controls:
Standard equipment
Grinder shipped with starter, overload protection and stop start station
User to supply over current protection

Cutting group:
Made of hot dipped tin plated steel
Stainless steel not recommended because of the pressures generated grinding frozen product

Grinding capacity:
Approximately 15,000 pounds per hour through a 1" plate

Includes:
Spurt guard
Spanner wrench
Parts/operation manual

No contamination:
A non-pressurized area with drain slots between the bearing housing and the grinder's hopper prevent lubricants from entering the food zone

Power Transmission:
Gearbox is carefully selected to with stand the shock and high torsion loads developed when grinding frozen product
Supplied with a separate bearing housing equipped with oversize tapered roller bearings
These bearing take up the high thrust loads developed when grinding frozen product

Primarily used as a first grind grinder for tempered frozen blocks
Slow speed, high torque characteristics of the FMBG make it unsuitable for efficiently grinding fresh meat

Options:
Block lift
Pre-breakers
Different extension hoppers
Bone collection systems
